High-Performance Desilter for Drilling Mud Solids Control – TR SolidsControl

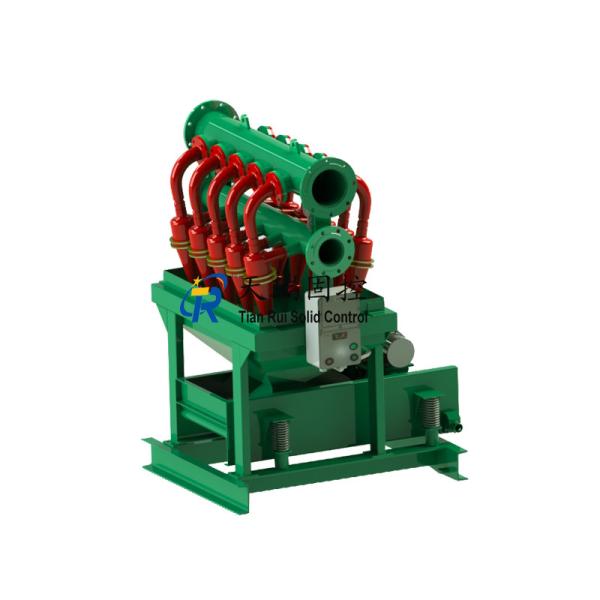

The TR SolidsControl desilter is a key component in drilling fluid purification, specifically designed to remove fine particles (15-44μm) from drilling mud. Featuring advanced hydrocyclone separation technology, our desilters enhance drilling fluid recovery, reduce equipment wear, and improve solids control efficiency in oil and gas drilling, HDD, tunneling, and industrial applications.
Attributes
· Model: TRCN Series
· Processing Capacity: 60 – 300m³/h
· Cyclone Specs: 4"
· Cyclone Quantity: 4 – 20 nos
· Working Pressure: 0.25 – 0.4 MPa
· Inlet Size: DN100 – DN150
· Outlet Size: DN125 – DN200
· Separation Point: 15 – 44μm
· Bottom Shaker: TRZS Series (Optional)
· Application: Drilling fluid purification, HDD, tunneling, mining, and coalbed methane drilling
Technical Specifications
|
Model
|
Capacity
|
Cyclone Specs
|
Cyclone Qty
|
Working Pressure
|
Inlet Size
|
Outlet Size
|
Separation Point
|
Bottom Shaker
|
Weight
|
Dimension (mm)
|
|
TRCN100-4N
|
60m³/h
|
4"
|
4nos
|
0.25-0.4MPa
|
DN100
|
DN125
|
15 – 44μm
|
TRZS60/N/A
|
560kg
|
1510×1160×2000
|
|
TRCN100-6N/8N
|
90/120m³/h
|
4"
|
6nos/8nos
|
0.25-0.4MPa
|
DN125
|
DN150
|
15 – 44μm
|
TRZS60/N/A
|
580kg
|
1510×1360×2250
|
|
TRCN100-12N/16N
|
180/240m³/h
|
4"
|
12nos/16nos
|
0.25-0.4MPa
|
DN150
|
DN200
|
15 – 44μm
|
TRZS752/N/A
|
1150kg
|
1835×1230×1810
|
|
TRCN100-20N
|
300m³/h
|
4"
|
20nos
|
0.25-0.4MPa
|
DN150
|
DN200
|
15 – 44μm
|
TRZS703/N/A
|
1950kg
|
2770×1785×1810
|
Key Features
High-Efficiency Hydrocyclone System – Removes 15-44μm fine particles, optimizing drilling mud quality.
Multiple Processing Capacities – Models ranging from 60m³/h to 300m³/h for different drilling projects.
Durable & Anti-Wear Materials – Polyurethane hydrocyclones for extended service life and corrosion resistance.
Modular & Compact Design – Customizable configurations with or without bottom shakers.
Easy Integration – Compatible with existing solids control systems, improving overall drilling efficiency.
Low Maintenance & Energy Efficient – Simple structure with minimal moving parts, reducing maintenance costs.
Applications
Oil & Gas Drilling – Ensures drilling fluid cleanliness, improving downstream equipment longevity.
HDD & Trenchless Drilling – Supports slurry recycling for tunneling and pipeline boring projects.
Tunneling & Construction – Enhances bentonite and polymer slurry processing.
Mining & Industrial Waste Treatment – Removes fine solids in coalbed methane and geothermal drilling operations.
Certifications
API & ISO 9001 Certified – Manufactured to international quality standards.
High-Wear Resistance Hydrocyclones – Made from polyurethane or ceramic for superior durability.
FAQ
1.What is the function of a desilter?
A desilter removes fine solids (15-44μm) from drilling mud, protecting pumps and improving fluid properties.
2.How does the TRCN series enhance drilling efficiency?
It reduces fluid loss, prevents equipment blockages, and extends the life of drilling fluids.
3.What cyclone sizes are available?
TRCN series desilters use 4" hydrocyclones, with configurations ranging from 4 to 20 unit
4. Is the desilter compatible with other solids control equipment?
Yes, it integrates seamlessly with shale shakers, desanders, and decanter centrifuges.
